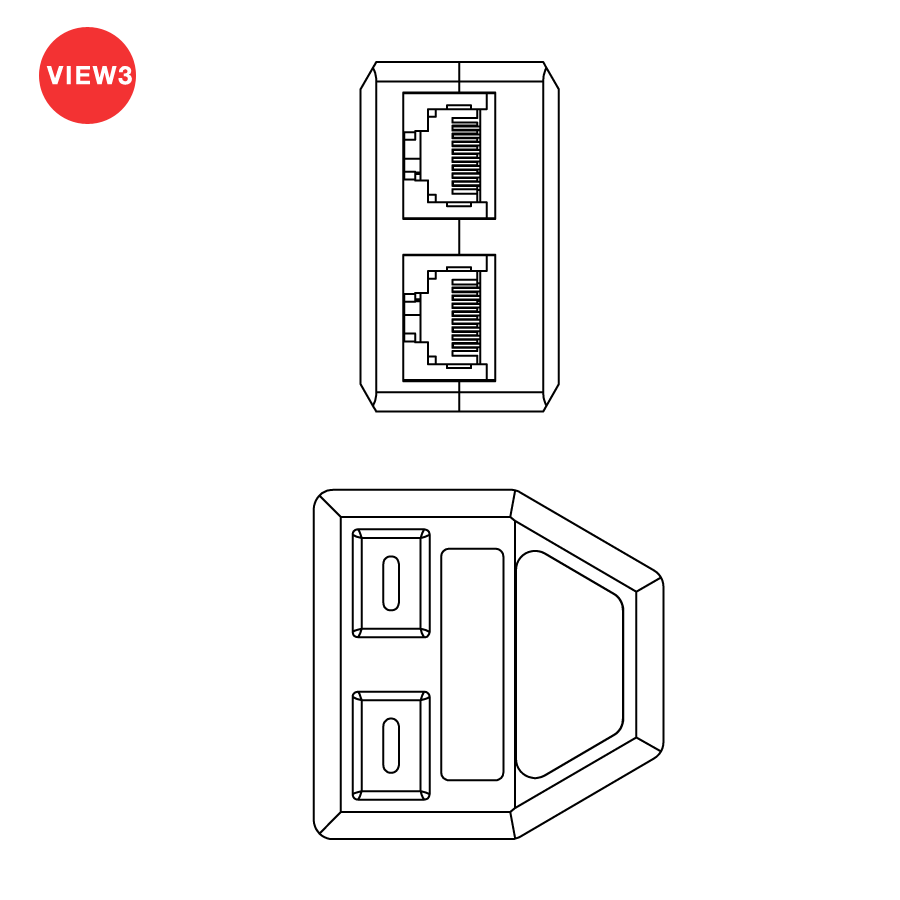

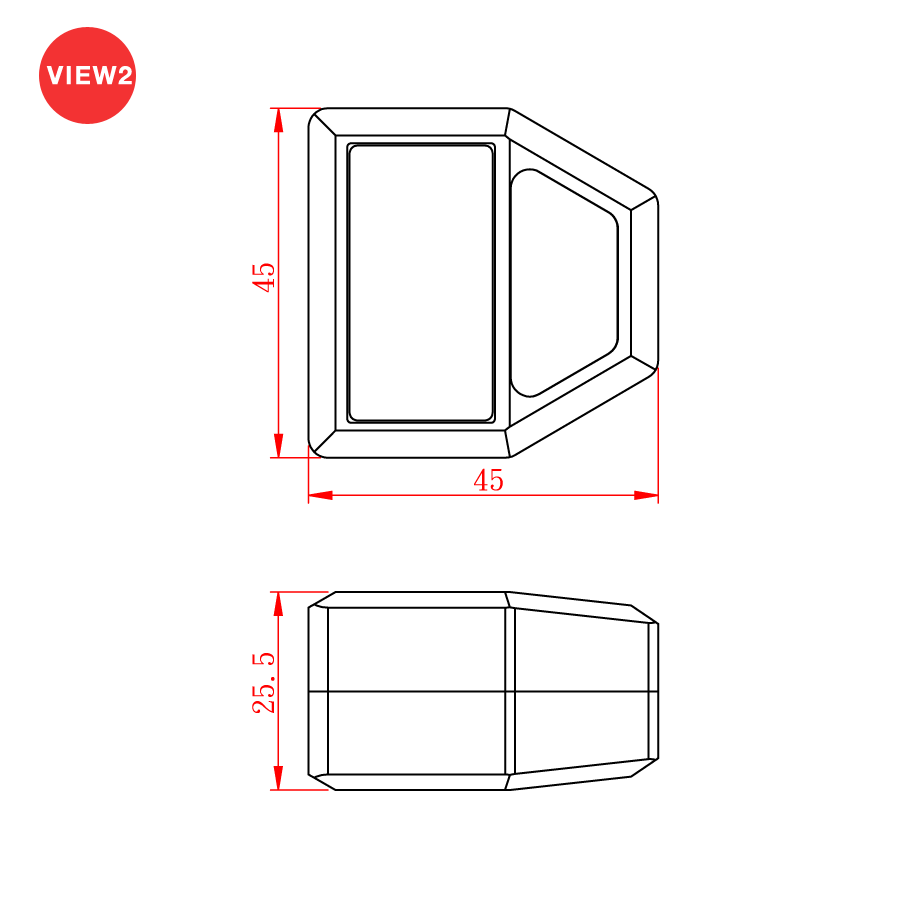

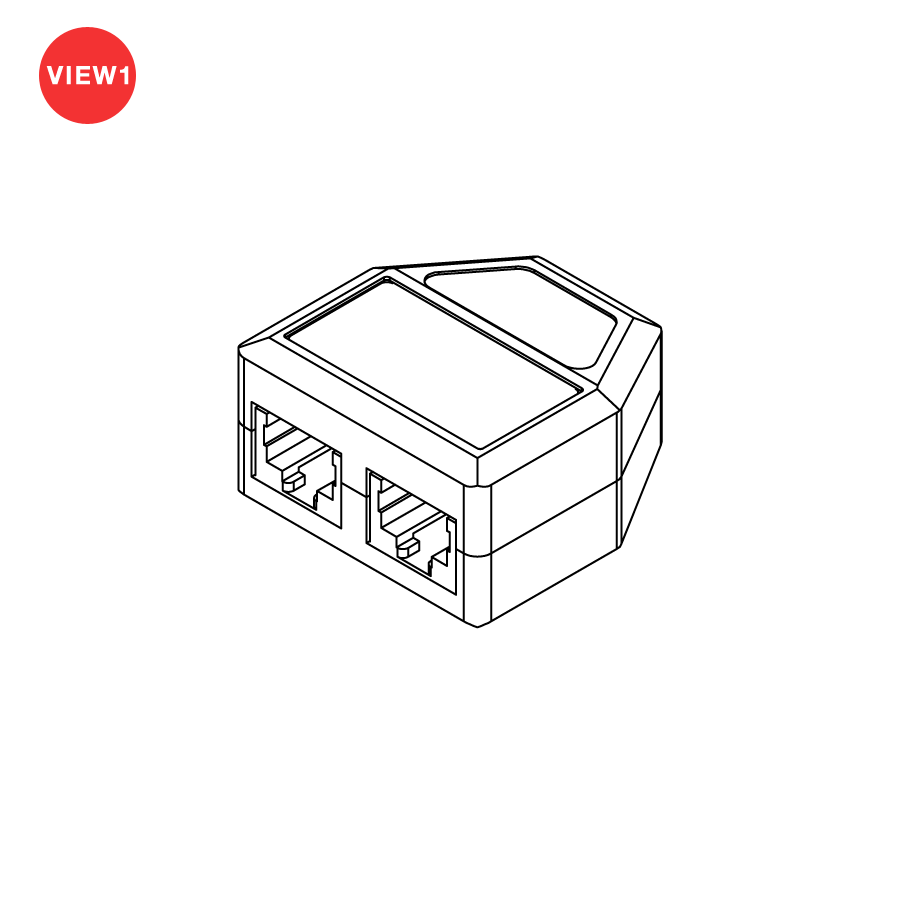

FAS07

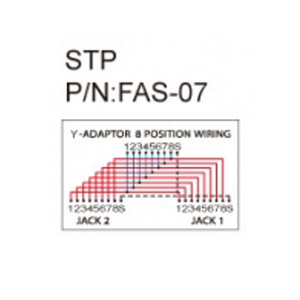

Bridges all 4-pair and compatible with any jack wired format


  • Color Option


PHYSICAL CHARACTERISTICS

Insertion life : 750 mating cycles with FCC compliant 8P plug.
Contact force : 100 GRAMS with FCC compliant 8P plug.
Plug retention force : 11 LBF min.
Operating temperature range : -10 °C to 60 °C.
Storage temperature range : -40 °C to 68 °C.
Humidity : 10%~90%RH.

ELECTRICAL

Insulation resistance : 500 MΩ.
Dielectric withstanding voltage : 1000 V AC.
DC current rating : 1.5 Amps.
DC resistance : 0.1Ω.
Contact resistance : 20MΩ.

NOTES

Only refence.
